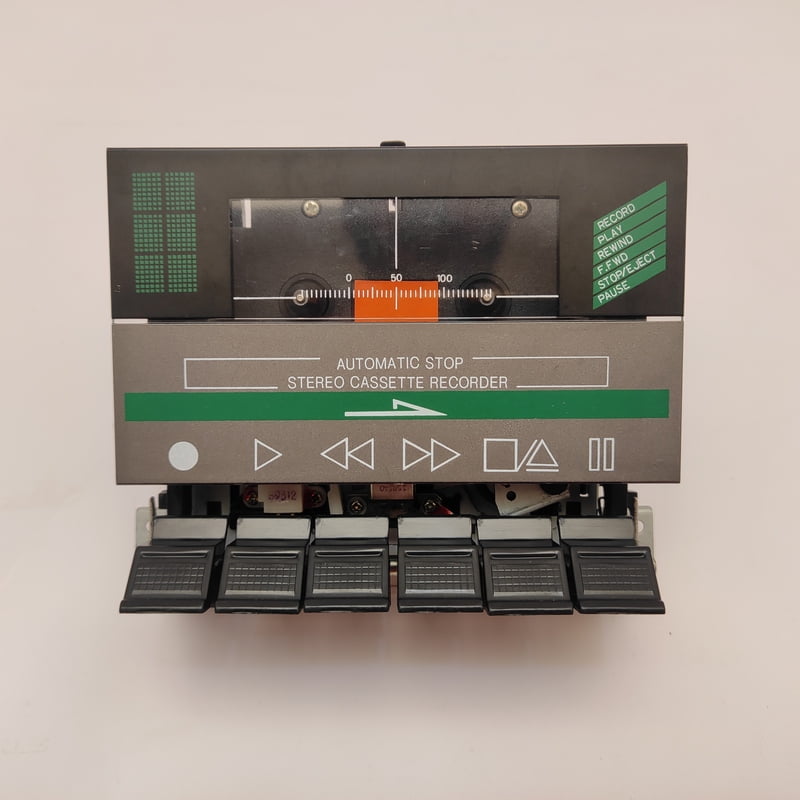

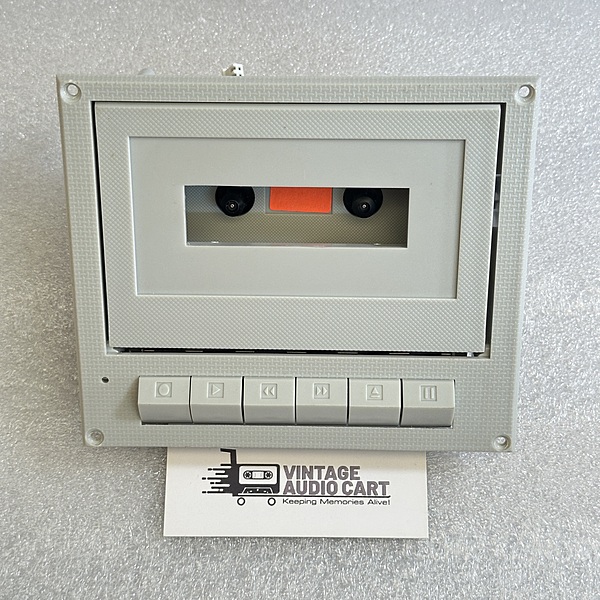

ASW - Cassette Deck Mechanism with Pre-Amp Board - DIY Kit - CDM-KT

Technical Specifications:

• Motor: 6 VDC
• Height: 10cms (approx.)
• Width: 13.5cms (approx.)
• Depth: 9cms (approx.)
• Material: GI stamped metal
• Weight: 395 Grams (approx.)

Highlights:

• Record
• Soft Eject
• Built-in play/rec and erase head
• Built-in motor
• Built-in record and playback head pre-amp
• Input/output RCA sockets

Applications:

• DIY Audio cassette deck
• Hobby cassette deck assembling
• Replacement cassette deck mechanism

Key Notes:

DIY Self-Assembly Kit: Designed for those with basic electronics skills—this product requires self-assembly. Includes cassette deck mechanism, pre-amp board, mono head (upgradeable to stereo), and all essential components for a functional unit. Note: Beginners may need soldering tools and multimeter.

Power & Playback: Runs on a simple 6V power transformer. Pre-amplified output connects directly to any external amplifier for rich stereo sound—output signal is line-level ready.

Recording: Recording features an erase head using a permanent magnet—no wiring required. To record: Connect your audio source and press Play + Record buttons simultaneously.

Head upgrade for Stereo: The mechanism is installed with a mono head and an additional Stereo head is supplied with this kit to upgrade to stereo version. Easy replacement instructions is down below.

Assembly Highlights & Head Replacement Guide:

This kit shines in its straightforward assembly, emphasizing precision for optimal performance. The power supply uses a 6V transformer, and output demands an amplifier connection for audible playback.

Head Replacement (Stereo):

Full Deck Removal Method: Remove four screws securing the cassette deck. Press Stop, open cassette door (deck can’t be removed without it).

Unscrew two button-securing screws on sides. Remove left head screw; loosen right screw (adjusts angle). Pull head left, install dual-channel head, solder wires, tighten/adjust right screw.

Pro Tip: After replacing the fitted mono head with the stereo head (Supplied in the kit), fine-tune head angle (via right screw or cassette door gap with small screwdriver) to avoid fuzzy playback, channel imbalance, or distortion. Always test post-install. Proper alignment ensures balanced left/right channels and crystal-clear reproduction.

Datasheet:

• KA22241 - Dual Equalizer Amplifier with ALC
• TA7668 - Dual Preamplifier for Tape Recorder

Notes:

This DIY kit is intended for users who already have a basic understanding of electronics and cassette deck assembly, as it requires knowing how the components work together and how to put them in place correctly.
